APPLICATION：MEASURING THE TOTAL VOLUME OF POTABLE WATER PASSING THROUGH THE METER，IT’S SUITABLE FOR DOMESTIC USE.
SPECIAL FEATURES：
* SIMPLY DESIGN
* HERMETICALLY SEALED REGISTER
* HIGH ACCURACY
* NEGLIGIBLE HEAD LOSS AT WORKING FLOW-RATE
* MAGNET DRIVE WITH ANTI-MAGNETIC
* HIGH-QUALITY MATERIAL WITH LONG LIFE OF SERVICE
* REMOTE READING SYSTEM, RELIABLE IN DATA COLLECTING
WORKING CONDITION:
* THE MAX. ADMISSIBLE WATER PRESSURE: 1.6MPA
* WATER TEMPERATURE: COLD WATER TEMP. UP TO 50℃
HOT WATER TEMP. UP TO 90℃
Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class B.
FLOW-ERROR CURVE
SPECIFICATION AND OVERAL DIMENSIONS
|
Description |
Unit |
Hydraulic data and dimensions |
|
Nominal size |
mm |
DN15 |
DN20 |
DN25 |
DN32 |
DN40 |
DN50 |
|
inch |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
Overload flow-rate (qs) |
m3/h |
3 |
5 |
7 |
12 |
20 |
30 |
|
Permanent flow-rate (qp) |
m3/h |
1.5 |
2.5 |
3.5 |
6 |
10 |
15 |
|
Transitional flow-rate (qt) |
l/h |
120 |
200 |
280 |
480 |
800 |
3000 |
|
Minimum flow-rate (qmin) |
l/h |
30 |
50 |
70 |
120 |
200 |
450 |
|
Min. reading |
l |
0.05 |
0.05 |
0.05 |
0.05 |
0.5 |
0.5 |
|
Max. reading |
m3 |
99999.9999 |
99999.9999 |
99999.9999 |
99999.9999 |
999999.999 |
999999.999 |
|
Nominal pressure |
MPa |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
ΔPmax at qs |
MPa |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
|
L |
mm |
165 |
190 |
260 |
260 |
300 |
300 |
|
G |
inch |
G3/ 4B |
G1B |
G1 1 /4B |
G1 1 /2B |
G2B |
G2 1 /2B |
|
I |
mm |
245 |
290 |
380 |
380 |
440 |
440 |
|
B |
mm |
79 |
79 |
94 |
94 |
128 |
128 |
|
h |
mm |
118 |
118 |
121 |
127 |
170 |
170 |
|
H |
mm |
192 |
192 |
171 |
177 |
225 |
225 |
|
Weight |
Without connections |
Kg |
0.986 |
1.15 |
1.7 |
2.54 |
4.42 |
4.88 |
|
with connections |
Kg |
1.259 |
1.512 |
2.318 |
3.17 |
5.38 |
6.55 |

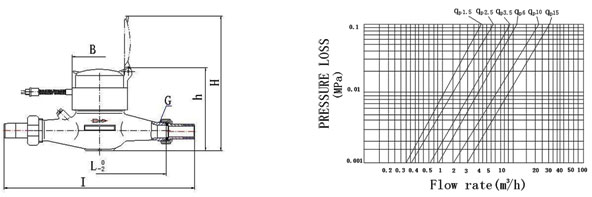

OVERALL DIMENSIONS PRESSURE LOSS CURVE
 |
